Importing and exporting a wide array of Engraving Machine
PRODUCT FEATURES
- Automatic chucks realize stable and reliable clamp ability via adjustment of air pressure, low rotating inertia, strong dynamic performance;
- Automatic supervision on gantry and cutting area, collaborating fixed limit, improve safety of machine and operator;
- Intelligent nesting function, intelligent border searching function, and auto positioning, improve utilization rate of plate
- Abnormal alarm during operation of machine, supply better human experience to user.

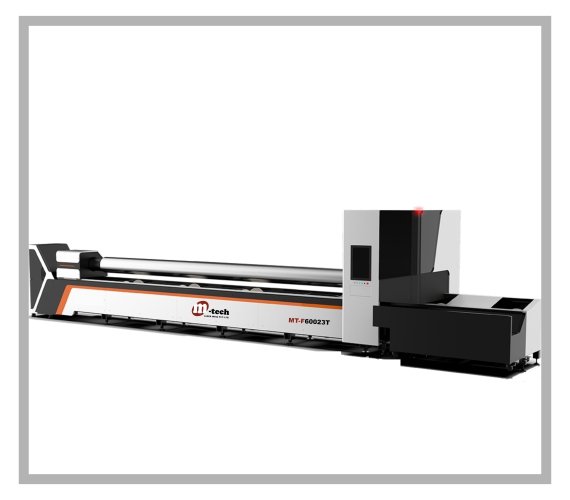

| MODEL | MT-F60023T | MT-F60035T |
|---|---|---|
| Length of tube | 6M / 9.2M | |
| Laser power | 1000W-3000W | |
| Maximum rotating speed of chucks | 140r/min | |
| Maximum feeding speed of chuck axis | 120m / min | |
| Acceleration | 1.2G | |
| Clamping range | 20-230 mm | 20-350mm |
| Positional accuracy | ± 0.03 mm | |
| Re-Positional accuracy | ± 0.02 mm | |
APPLIED MATERIAL
Carbon steel tube, stainless steel tube, silicon steel or aluminum alloy and other metal tubes.
