Importing and exporting a wide array of Engraving Machine
PRODUCT FEATURES
- Plate welded machine bed, processed with high temperature annealing and destressing to guarantee no deformation during transportation and using
- Imported controller and servo motor, professional laser cutting system, flexible operation
- Operation system offer rich and friendly human-computer interaction interface. it is a bridge between machine and operator.
- Machine use Raycus / IPG laser source, longer lifetime more then 100,000 hours, high precision and stable performance:
- The beam is finished by artificial aging and solution treatment, so that the beam hardness can reach T6, and it has the characteristics of corrosion resistance, oxidation resistance, toughness and ductility. It is light in weight, convenient for high-speed movement during processing, and at the same time has the characteristics of high flexibility, which can greatly improve the processing accuracy when the accuracy is met.
- Super low cost, lower consumption. Compressed air as auxiliary gas to cut all metals

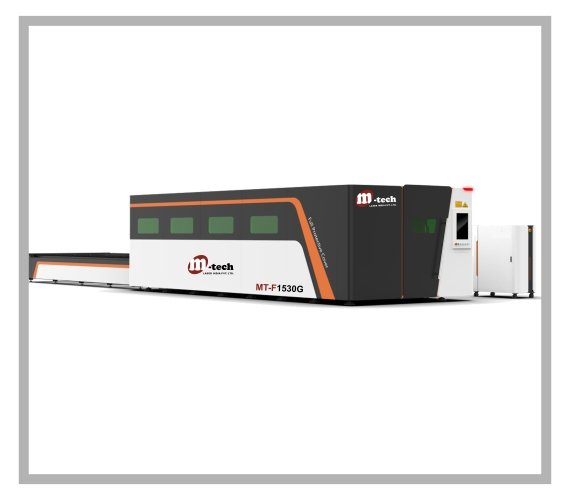

| MODEL | MT-F1530G | MT-F2040G | MT-F2060G | MT-F2560G | MT-F2580G |
|---|---|---|---|---|---|
| Cutting range | 1500*3000mm | 2000*4000mm | 2000*6000mm | 2500*6000mm | 2500*8000mm |
| Laser power | 1000W-6000W | ||||
| Linkage speed | 140m/min | ||||
| Acceleration | 2.0G | ||||
| Positional accuracy | ± 0.03mm | ||||
| Re-Positional accuracy | ± 0.02mm | ||||
| Pallet exchange time | 25s | 30s | 35s | 40s | 45s |
| Voltage | 380V / 50HZ / 3phase | ||||
